When planning an industrial shed, cold storage, clean room, or commercial building, one common confusion is PUF panel vs sandwich panel difference. Many people think both are the same — but that’s not entirely correct.
In this detailed guide, we will explain the difference between PUF panels and sandwich panels, their core materials, strength, insulation properties, applications, and which one is better for your project.

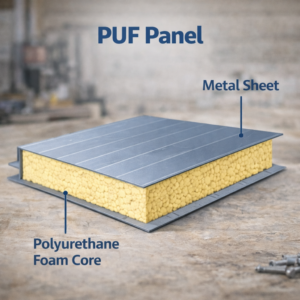

What is a PUF Panel?
A PUF panel (Polyurethane Foam panel) is an insulated sandwich panel that uses polyurethane foam (PUF) as its core material between two metal sheets (usually PPGI or GI sheets).
PUF panels are widely used in:
- Cold storages
- Food processing units
- Pharmaceutical plants
- Clean rooms
- Industrial buildings
They provide excellent thermal insulation and structural strength.

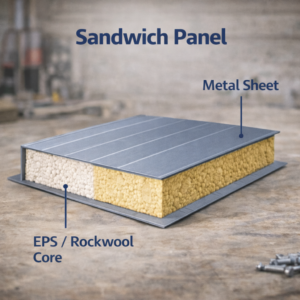

What is a Sandwich Panel?
A sandwich panel is a broad term for any panel that has:
- Two outer metal sheets
- One insulated core material in between
The core material can be:
- Polyurethane (PUF)
- EPS (Expanded Polystyrene)
- Rockwool
- Glass wool
So technically, PUF panel is a type of sandwich panel.
PUF Panel vs Sandwich Panel Difference (Detailed Comparison)
1️⃣ Definition Difference
| Feature | PUF Panel | Sandwich Panel |
| Meaning | Uses polyurethane foam core | General term for insulated panels |
| Category | Specific type | Broader category |
👉 Conclusion: All PUF panels are sandwich panels, but not all sandwich panels are PUF panels.
2️⃣ Insulation Performance
PUF panels have:
- Low thermal conductivity (~0.022 W/mK)
- Excellent temperature control
- High energy efficiency
Other sandwich panels (like EPS or Rockwool) have comparatively higher thermal conductivity.
👉 Winner: PUF Panel (better insulation)
3️⃣ Strength & Load Bearing Capacity
PUF panels:
- High compressive strength
- Better rigidity
- Suitable for roofing and wall applications
EPS panels:
- Lower strength
- More economical
Rockwool panels:
- Good fire resistance
- Moderate strength
👉 Winner: PUF Panel (for structural performance)
4️⃣ Fire Resistance
Rockwool sandwich panels:
- Better fire resistance
- Suitable for fire-sensitive areas
PUF panels:
- Fire-retardant grades available
- Not as fireproof as rockwool
👉 Winner: Rockwool Sandwich Panel (for fire rating)
5️⃣ Cost Comparison
- EPS Sandwich Panel → Most economical
- PUF Panel → Medium to high cost
- Rockwool Panel → Slightly higher cost
👉 Winner: EPS (budget option)
6️⃣ Applications
- Cold storage
- Clean rooms
- Pharmaceutical industry
- Dairy plants
- Temperature-controlled warehouses
Other Sandwich Panel Applications:
- Industrial sheds
- Office partitions
- Warehouses
- Temporary site offices
Technical Comparison Table
| Property | PUF Panel | EPS Panel | Rockwool Panel |
| Insulation | Excellent | Moderate | Good |
| Fire Resistance | Moderate | Low | High |
| Strength | High | Medium | Medium |
| Cost | Medium | Low | Medium-High |
| Weight | Lightweight | Very Light | Slightly Heavy |
Which One Should You Choose?
Choose PUF Panel If:
✔ You need strong thermal insulation
✔ You are building cold storage
✔ Energy efficiency is important
✔ Long-term durability matters
Choose Rockwool Sandwich Panel If:
✔ Fire resistance is top priority
✔ Industrial safety compliance required
Choose EPS Panel If:
✔ Budget is limited
✔ Insulation requirement is moderate
Final Verdict: PUF Panel vs Sandwich Panel Difference
The major difference between PUF panel and sandwich panel is that sandwich panel is a general category, while PUF panel is a specific high-performance insulated panel within that category.
If your project demands:
- Better insulation
- Higher structural strength
- Long-term energy savings
Then PUF panel is the better option.
FAQs
❓ Is PUF panel stronger than EPS sandwich panel?
Yes, PUF panels provide better strength and insulation performance compared to EPS panels.
❓ Are PUF panels fireproof?
They are available in fire-retardant grades but are not as fire-resistant as rockwool panels.
❓ Which panel is best for cold storage?
PUF panel is the best choice for cold storage due to superior thermal insulation.
Conclusion
Understanding the PUF panel vs sandwich panel difference helps you select the right insulated panel for your building. While sandwich panels include multiple types, PUF panels stand out for insulation efficiency, strength, and long-term performance.
If you are planning an industrial or temperature-controlled facility, selecting the correct panel system can significantly impact energy costs and durability.
